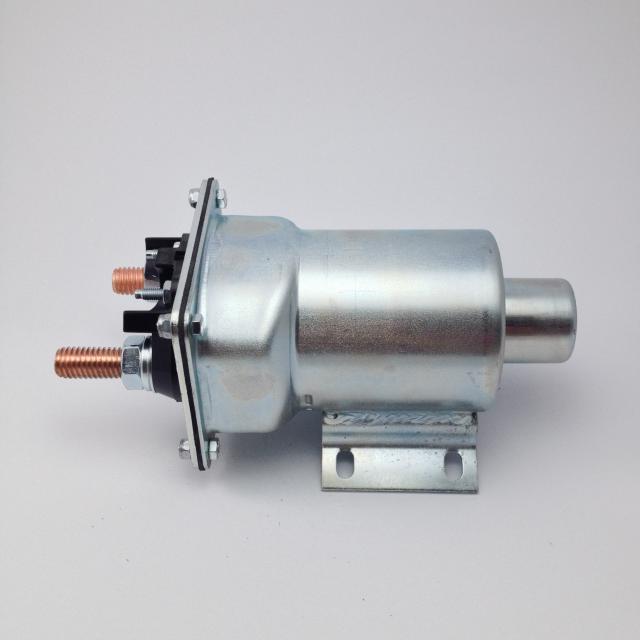

SOLENOIDE

PARTE NO: 9879

 Soporte disponible las 24/7 para este producto siempre que lo necesite

 Envío gratuito y devoluciones gratuitas de 30 días

Cubierto por una garantía limitada del fabricante

Características y Beneficios

Un solenoide HI-CORP.®️ está compuesto por una bobina de alambre, la carcasa y un émbolo móvil (armadura). Cuando se introduce una corriente eléctrica, se forma un campo magnético alrededor de la bobina que atrae el émbolo. Más simplemente, un solenoide convierte la energía eléctrica en trabajo mecánico.

Aplicaciones

• Para: Delco 40MT, 50MT Series DD Starters

Espec. Técnicas

• ESPECIFICACIONES: 12 voltios, 4 terminales, base aislada
• ESPECIFICACIONES para: Delco 40MT, 50MT Series DD Starters
• DIM 1: Batt. Término. 1 / 2-13 (derecho)
• DIM 2: Término del motor. 1 / 2-13 (izquierda)
• DIM 3: Cambiar término. Poste 10-32 (derecho)
• DIM 4: Grd. Término. Poste 10-32 (LH)
• NOTA 1: imagen representativa, el artículo real puede variar
• FUNCIÓN 1: 100% nuevo WAIglobal
• FUNCIÓN 2: Contactos estacionarios plateados

Detalles

Remplaza:

Case A47931, Caterpillar 2N-1973, 3T-5045, 7L-6586, 9X-8236, Cummins 3603870RX, 3604230RX, Delco 1115556, 1115606, Ford E1HZ-11390-A, SW1720, Mack Truck 2132-1115556, 2132-1119879, Massey Ferguson 1022-662-M91, 1055-740-M91, 1903-173-M91, White 30-3090892, 30-3370895, 867224A, V1117550

Usado en:

Adams Division (1963-1964) ** Agco Gleaner (1986-1986) ** Allis Chalmers (1979-1986) ** Case (1979-1992) ** Caterpillar Ag. & Ind. (1985-1995) ** Champion (1975-1992) ** Chevrolet (1979-1988) ** Clark (1973-1985) ** Construction Equipment Co. (1969-1969) ** Cummins Engines (1983-1990) ** Cummins Mercruiser (1980-1985) ** Ford (1982-1989) ** Freightliner (1979-1993) ** GMC (1979-1988) ** Grove Mfg. (1983-1987) ** Hyster (1970-1980) ** International (1980-1987) ** John Deere (1974-1984) ** Kenworth (1980-1994) ** Mack (1972-1999) ** Massey Ferguson (1978-1986) ** New Holland Industrial (1978-1996) ** Perkins (1983-1984) ** Peterbilt (1980-1990) ** Steiger (1981-1986) ** Versatile (1967-1985) ** Volvo (1986-1991) ** Wabco (1981-1981) ** Waukesha (1968-1985) ** Western Star HD (1974-1998) ** White Industrial (1978-1995)

Número de Unidad WAI Compatible:

Bosch 0 001 421 004, 0 001 421 006; Case 121555C91, 121555C91, 20-1295T91, 262762C91, 262762C91, 412732C91, 412732C91, 415515C91, 415515C91, 431481C91, 431481C91, 431481R91, 431481R91, 510275C91, 510275C91, 522458C91, 522458C91, 523579C91, 523579C91, 530692C91, 530692C91, 777525C91, 777525C91, 782685C91, 782685C91, 786086C91, 786086C91, 875755R91, 875755R91, A145324, A145324, A162578, A162578, A34442, A34442, A47464, A47464, A75864, A75864; Caterpillar 0R5347, 120-9100, 2N3538, 2N3538, 3T2654, 3T2654, 3T2655, 3T2655, 3T2655, 3T2657, 3T2659, 3T2659, 3T2879, 3T2879, 3T3154, 3T3154, 3T3156, 4L9547, 4L9547, 4N0956, 4N0956, 4N1064, 4N1064, 4N9253, 4N956, 4N956, 5L4160, 5L4160, 5L4168, 5L4168, 5L4169, 5L4169, 5L5667, 5L5667, 5L5867, 5L5867, 7G9132, 7N6503, 7N6503, 7T1081, 7T1081, 7T2265, 7T2265, 7T2267, 7T9254, 7T9254, 8C359, 8C359, 8C3592, 8C3592, 8C3593, 8C3593, 8C3595, 8C3648, 8C3648, 8L5881, 8L5881, 8L8206, 8L8206, 9L3597, 9L3597, 9L6200, 9L6200, 9N0716, 9N0716, 9N0721, 9N0721, 9N716, 9N716, 9W0058, 9W0058, SL8206; Cummins 3593752RX, 3593752RX, 3603863RX, 3603863RX, 3603864RX, 3603864RX, 3603865RX, 3603895RX, 3603895RX, 3604232RX, 3604492RX, 3604492RX, 3604680RX; Delco 10461045, 10461046, 10461046, 10461056, 10461059, 10461060, 10461073, 10461073, 10461178, 10478813, 10478877, 10478881, 10478904, 10478906, 10478910, 10478917, 1109221, 1109274, 1109295, 1109545, 1109554, 1109790, 1109828, 1109964, 1113406, 1113410, 1113475, 1113480, 1113500, 1113532, 1113537, 1113538, 1113543, 1113547, 1113674, 1113678, 1113691, 1114080, 1114748, 1114749, 1114750, 1114751, 1114752, 1114753, 1114754, 1114757, 1114758, 1114761, 1114765, 1114766, 1114769, 1114770, 1114771, 1114795, 1114802, 1114807, 1114808, 1114809, 1114810, 1114811, 1114812, 1114814, 1114815, 1114817, 1114818, 1114819, 1114821, 1114822, 1114823, 1114825, 1114827, 1114828, 1114832, 1114834, 1114835, 1114836, 1114839, 1114882, 1114883, 1114884, 1114885, 1114886, 1114888, 1114889, 1114890, 1114891, 1114892, 1114893, 1114894, 1114895, 1114896, 1114897, 1114898, 1114899, 1114900, 1114901, 1114904, 1114906, 1114908, 1114911, 1114913, 1114919, 1114920, 1114927, 1114928, 1114929, 1114930, 1114931, 1114932, 1114933, 1114934, 1114938, 1114942, 1114943, 1114955, 1114956, 1114957, 1114960, 1114961, 1114967, 1114969, 1114975, 1114976, 1114977, 1114985, 1114986, 1114988, 1114990, 1114991, 1114992, 1114993, 1114994, 1114997, 1114999, 1990200, 1990201, 1990208, 1990209, 1990211, 1990212, 1990214, 1990215, 1990218, 1990219, 1990221, 1990223, 1990224, 1990252, 1990261, 1990277, 1990280, 1990296, 1990298, 1990299, 1990303, 1990323, 1990325, 1990329, 1990481, 1993703, 1993859, 1993864, 1993968; Detroit Diesel R0461178; Ford C5TF-11000-A, C5TF-11000-A, C5TZ-11002-C, C5TZ-11002-C, C6TF-11000-A, C6TF-11000-A, C6TF-11000-C, C6TF-11000-C, C6TZ-11002-E, C6TZ-11002-E, C7TF-11000-B, C7TZ-11002-B, C8TF-11000-C, C8TF-11000-C, C8TZ-11002-B, C8TZ-11002-B, D3TF-11001-BA, D3TF-11001-BA, D4TZ-11002-A, D4TZ-11002-A, D4TZ-11002-B, D4TZ-11002-B, D4TZ-11002-E, D4TZ-11002-E, D4TZ-11002-F, D4TZ-11002-F, D9PZ-11002-A, D9PZ-11002-A, E0HZ-11002-A, E0HZ-11002-B, E2HZ-11002-A, E2HZ-11002-A, E4HZ-11002-A, E4HZ-11002-B, E6HT-11001-AA, E6HT-11001-AA, E6HZ-11002-A, E6HZ-11002-A, E6HZ-11002-B, E6HZ-11002-B; Ford Engineering C5TF-A, C5TF-A, C6TF-A, C6TF-A, C6TF-C, C6TF-C, C7TF-B, C8TF-C, C8TF-C; IHC, Navistar 262762C91, 262762C91, 382637C91, 412732C91, 412732C91, 415515C91, 415515C91, 431481C91, 431481C91, 431481R91, 431481R91, 510275C91, 510275C91, 522458C91, 522458C91, 523579C91, 523579C91, 530692C91, 530692C91, 5344721C91, 5344721C91, 599103C91, 673796C93, 673796C93, 684639R91, 777525C91, 777525C91, 782685C91, 782685C91, 786086C91, 786086C91, 875755R91, 875755R91; John Deere AR102188, AR46886, AR62153, RE10321, RE10321, RE13942, TY1902, TY6697, TY6723, TY6723; Komatsu 1253279H91; Letrika (Iskra) 11.131.904, 11.131.904, 11.131.904, 11.131.904, 11.131.904, 11.131.904, 11.131.906, 11.131.906, 11.131.906, 11.131.906; Mack Truck 8M, 1115556, 66-106-ZM
